Plasma Blast Freezer Manufacturers

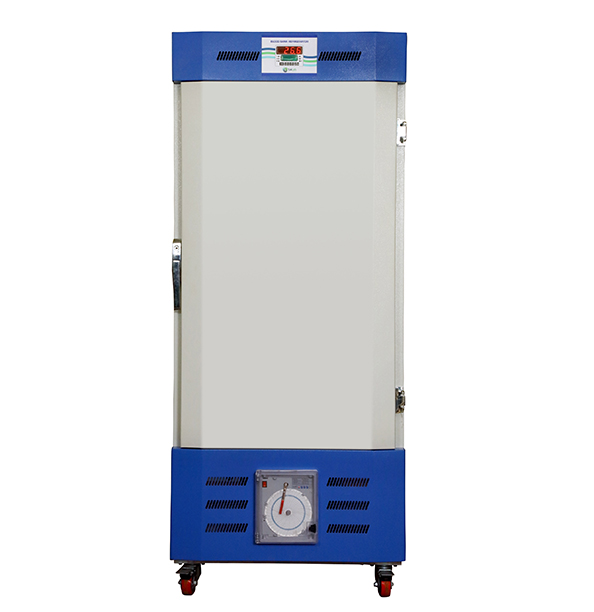

Plasma Freezer -40°C

SAILAB EQUIPMENT’S “PLASMA FREEZER” are specially designed for Storing Plasma Bags under a specific temperature of -40°C. The Plasma Freezeris fully CNC made machines fully CNC made machine with Ergonomics design. The Chamber outer body is made of Mild Steel duly Powder Coated and inner chamber made of Stainless Steel 304 grade for STD Model, and fully Stainless-Steel unit can be supplied with inner and outer in SS304 grade steel.


FURTHER WE ALSO MANUFACTURE CUSTOMIZED SIZE OF PLASMA FREEZER AS PER USERS’ REQUIREMENT.

KEY FEATURES OF PLASMA FREEZER

  • Freezer available to store Plasma Bags from 90 bags to 375 bags.
  • Inner made of SS304 Stainless steel and outer body Mild sheet duly powder coated.
  • SS304 Wire mesh basket with adjustable partition.
  • Temperature -40°C. Accuracy ± 2°C.
  • Temperature controller – Dual display of Set and Process Value.
  • Audio Visual Alarm for high and low temperature variation with Door open.
  • Non- CFC Refrigerator System.
  • 7 days Circular Chart Recorder.
  • Castrol Wheel provided for easy movement of the unit.
Plasma Freezer Manufacturers in India
Plasma Freezer Manufacturers

TEMPERATURE CONTROL

  • Dual Display controller for Set and process value.
  • Operating temperature from -40°C.
  • PT 100 (RTD) sensor.
  • PUF insulated door to prevent loss of temperature.

SAFETY FEATURES

  • Lockable doors for added safety.
  • 180 sec compressor “on” delay timer to safeguard the compressor.
  • Password protected keypad locks.
  • Door Alarm.
  • Temperature variation alarm as user defined.

OPTIONAL ACCESSORIES

  • Temperature Display backup for 12hrs in case of power failure.
  • Single / Multi Data logging system with RS 485 Port.
  • Inbuild stabilizer.

DOCUMENTS

  • Calibration certificate with supporting documents..
  • User Manual.
  • Warranty certificate.

TECHNICAL SPECIFICATION OF PLASMA FREEZER

Model No. Inner Size In CMS
H x W x D		 Outer Size In CMS
H x W x D		 Plasma Bag Capacity Volume
SPF – 90 52 x 42 x 42 124 x 60 x 62 75 90 Litres
SPF – 18 72 x 50 x 50 157 x 68 x 65 135 180 Liters
SPF – 30 80 x 62 x 62 182 x 76 x 70 245 300 Liters
SPF – 36 100 x 58 x 61 182 x 76 x 81 300 360 Liters
SPF - 50 100 x 65 x 70 187 x 83 x 90 375 480 Liters
SPF - 60 110 x 75 x 75 450 600 Liters
